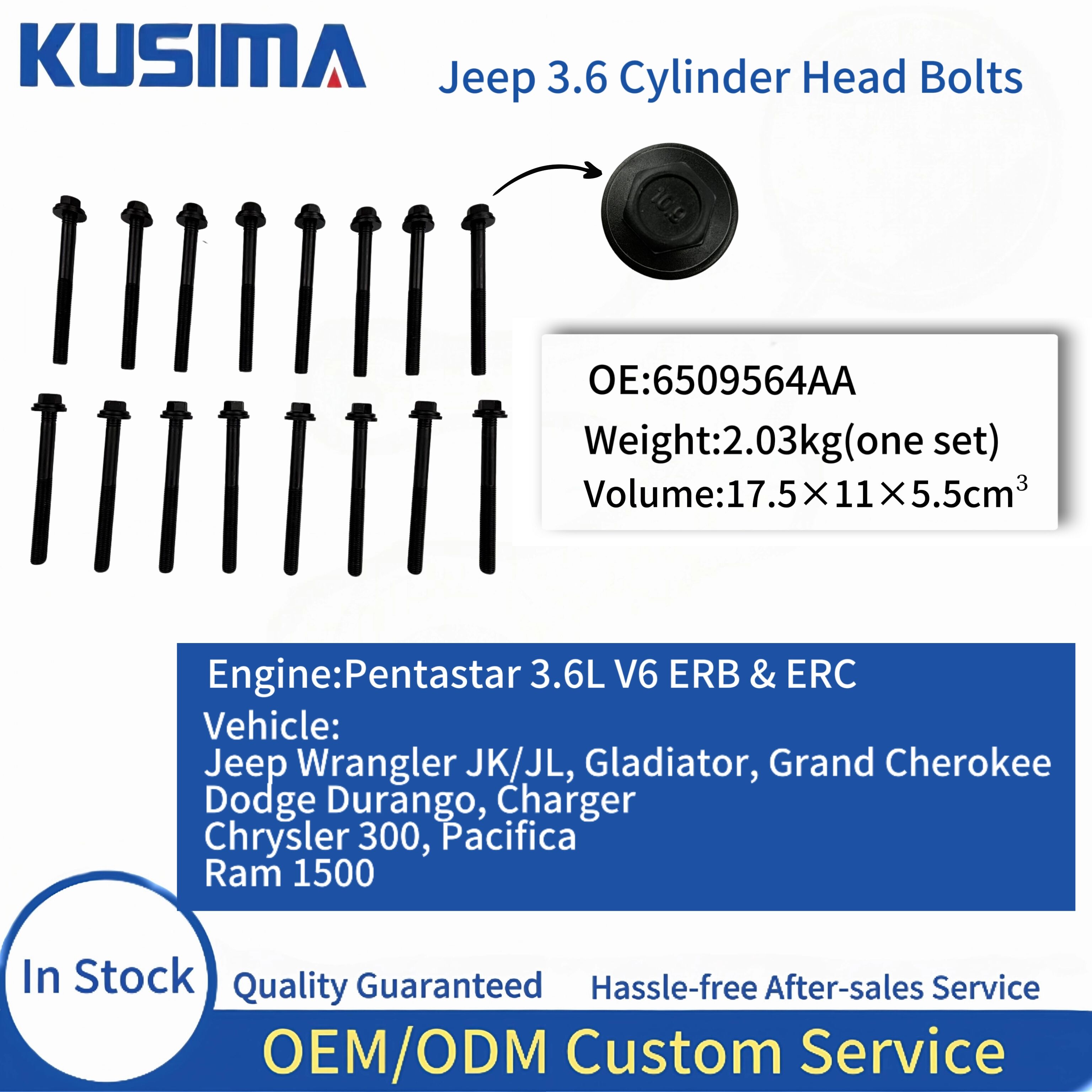

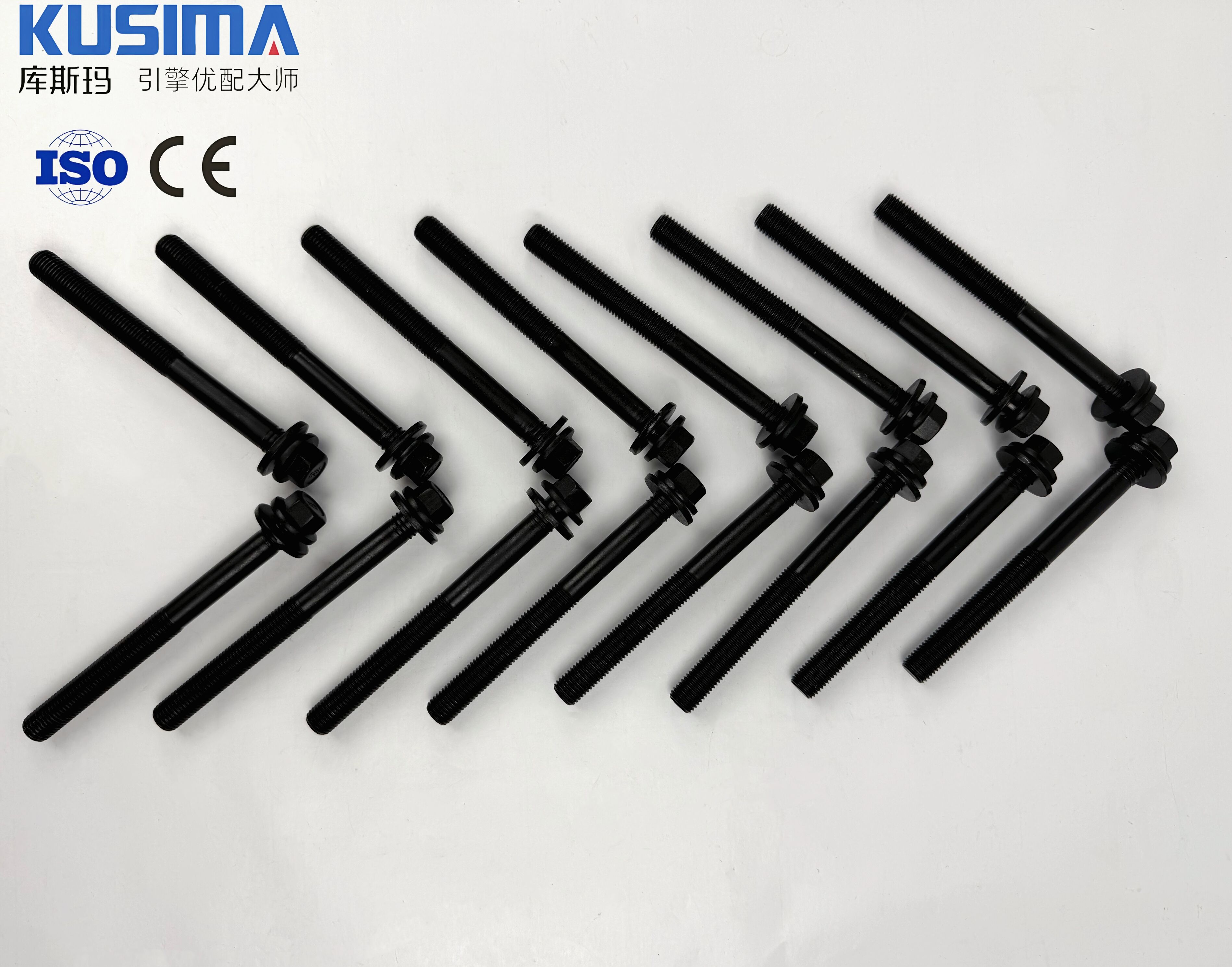

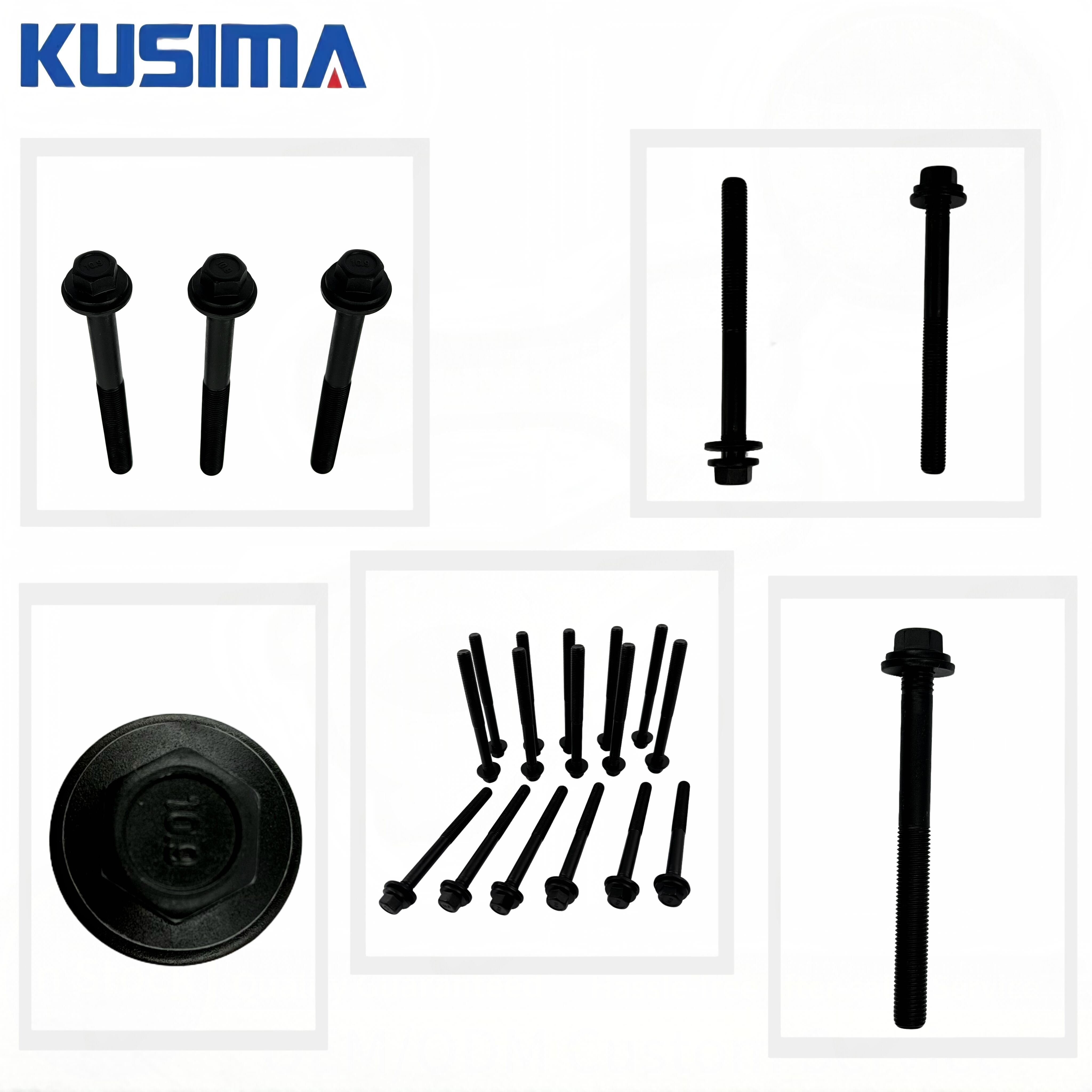

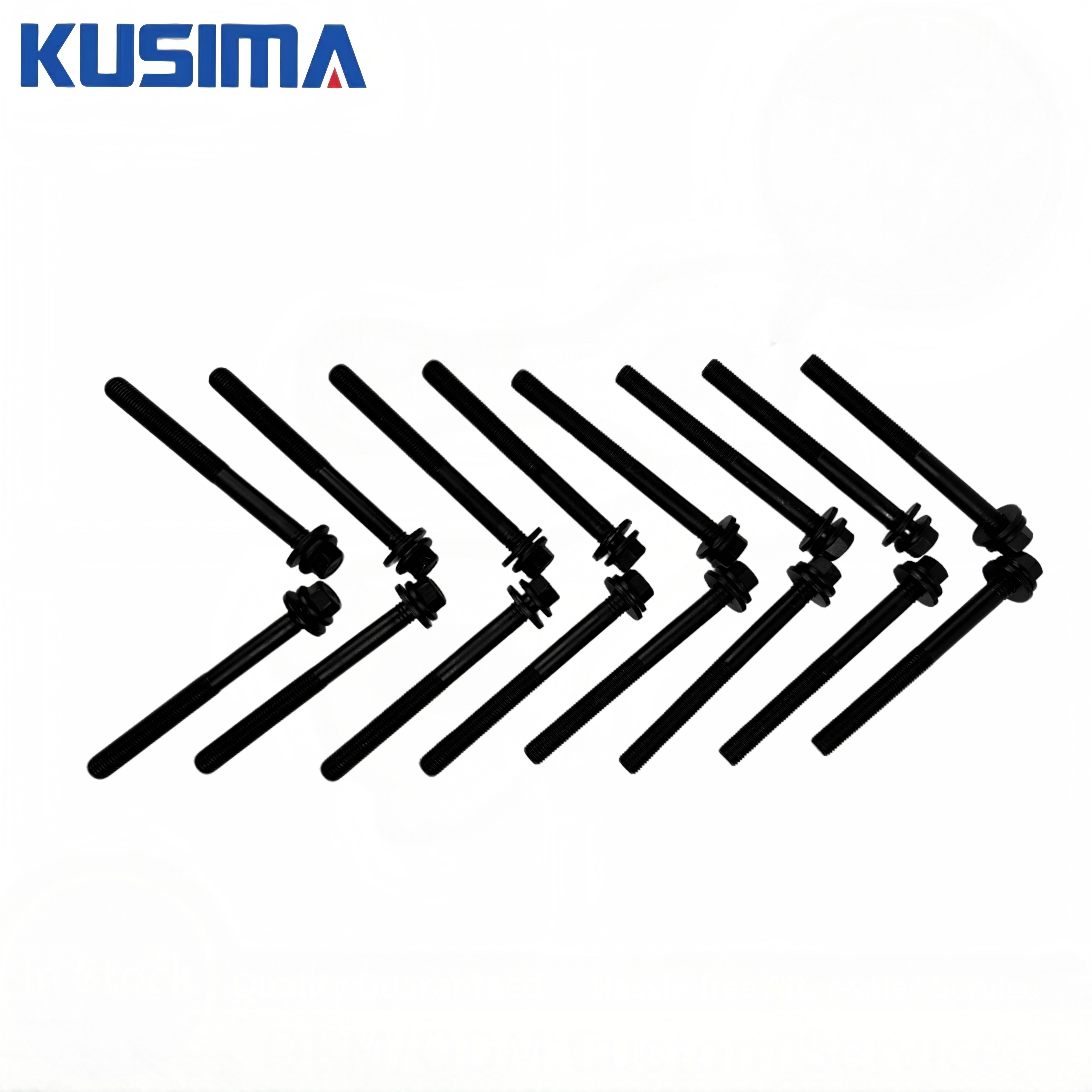

Factory New Cylinder Head Bolts For Jeep Chrysler Grand Cherokee Wrangler 3.6L ERC ERB V6 Petrol Engine OE 6509564AA

Automotive Engine cylinder head bolts: Advantages and Application Scenarios

Automotive engine cylinder head bolts (or head studs) are critical fasteners that securely clamp the cylinder head to the engine block, sealing the combustion chamber, coolant passages, and oil galleries. They must withstand extreme combustion pressure, heat, vibration, and thermal expansion. Below are their key advantages and typical application scenarios.

Core Advantages of High-Performance Cylinder Head Bolts

1. Extreme Clamping Force & Sealing Performance

• Maintain strong and consistent pressure to ensure a reliable seal between the head, block, and head gasket.
• Prevent leakage of:

• Combustion gas (blow-by)
• Engine coolant
• Engine oil

• Effectively resist lifting forces from high cylinder pressure, especially in turbocharged and high-compression engines.

2. High Temperature & Fatigue Resistance

• Made from high-strength alloy steel (usually 8.8, 10.9, 12.9 grade or specialized aerospace-grade materials).
• Maintain mechanical properties at high operating temperatures (200–350°C).
• Resist fatigue failure under repeated thermal expansion and contraction.

3. High Tensile & Yield Strength

• Resist stretching, breaking, or loosening under heavy load.
• Many modern head bolts are torque-to-yield (TTY) bolts designed to stretch plastically during installation for uniform loading.
• Provide more consistent clamping force than conventional bolts.

4. Stability Under Vibration

• Precision thread design and proper torque sequence prevent self-loosening.
• Compatible with lock washers, thread locker, and liquid gasket coatings for improved reliability.

5. Dimensional Stability & Uniform Loading

• Precision manufacturing ensures consistent length, thread pitch, and hardness.
• Distribute clamping force evenly across the cylinder head, reducing warping and distortion.

6. Reusability or Serviceability

• Standard head bolts: often reusable if not overstretched.
• TTY bolts: generally single-use, but provide superior sealing for modern engines.
• Head studs: can be reused multiple times, making them popular in performance and heavyduty applications.

Common Types & Application Scenarios

1. Grade 8.8 / 10.9 Standard Head Bolts

• Advantages: Economical, sufficient strength for naturally aspirated engines.
• Application Scenarios:
  • Small-displacement gasoline engines
  • Everyday passenger cars, economy vehicles
  • Low-output naturally aspirated engines

2. Grade 12.9 & High-Strength Alloy Bolts

• Advantages: Very high tensile strength, heat resistance, fatigue resistance.
• Application Scenarios:
  • Medium and high-output gasoline engines
  • Naturally aspirated performance engines
  • Light-duty diesel engines

3. Torque-to-Yield (TTY) Head Bolts

• Advantages: Uniform clamping force, reduced head distortion, improved sealing.
• Application Scenarios:
  • Most modern passenger car engines (GDI, TGDI)
  • Engines with aluminum blocks and heads
  • Engines requiring high thermal stability

4. Cylinder Head Studs (Stud Kits)

• Advantages: More accurate preload, easier installation, reusable, less head damage.
• Application Scenarios:
  • High-performance and racing engines
  • Turbocharged, supercharged, and nitrous-assisted engines
  • Modified and heavy-tuning vehicles
  • Heavy-duty diesel engines

5. Heavy-Duty & Diesel Engine Head Bolts

• Advantages: Extra-long, large-diameter, ultra-high strength to resist extreme pressure.
• Application Scenarios:
  • Commercial diesel engines (trucks, buses, construction machinery)
  • Marine and industrial diesel engines
  • High-load, long-running powertrains
